SMALL SIGNAL SCHOTTKY BARRIES SWITCHING DIODES
FEATURES
• Integrated protection ring against static discharge
• Very low forward voltage
• Lead (Pb)-free component
• In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA
|

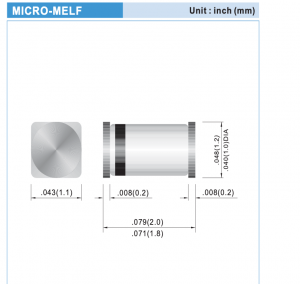

MICRO-MELF |
Unit : inch (mm) |
|
.048(1.2) .040(1.0)DIA .043(1.1) .008(0.2) .008(0.2) .079(2.0) .071(1.8) |
|
VOLTAGE
50 Volts
CURRENT
0.5 Amperes
•
• Terminals: Solderable per MIL-STD-750, Method 2026 • Polarity: See Diagram Below
• Mounting Position: Any
T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel
