Product Details

SMALL SIGNAL SCHOTTKY BARRIES SWITCHING DIODES

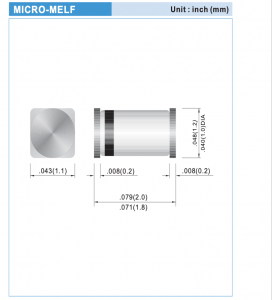

MICRO-MELF

Unit : inch (mm)

.048(1.2) .040(1.0)DIA

.043(1.1) .008(0.2) .008(0.2)

.079(2.0) .071(1.8)

VOLTAGE

40 Volts

CURRENT

0.15 Amperes

• • • • •

• • • •

FEATURES

Low capacitance
Low leakage current
Low forward voltage drop
Very low switching time IncompliancewithEURoHS2002/95/ECdirectives

MECHANICAL DATA

Case: Molded Glass MICRO-MELF
Terminals: Solderable per MIL-STD-750, Method 2026 Polarity: See Diagram Below
Mounting Position: Any

T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel
